CIR90A
产品描述

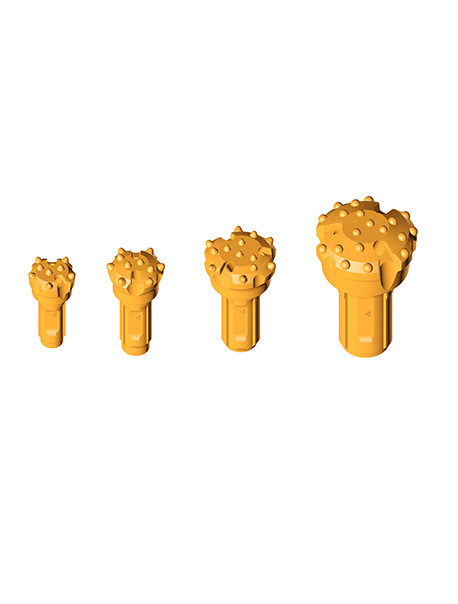

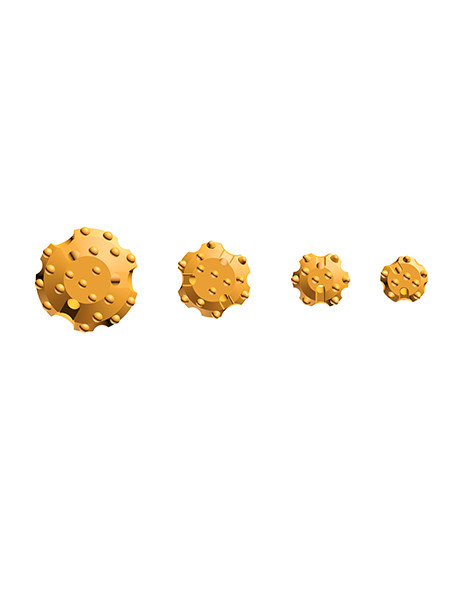

中低风压潜孔冲击器及钻头 CIR系列潜孔钻头
Middle＆Low air pressure DTH hammers and drill bits CIR series DTH drill bits
直径 Diameter | 合金数量、直径 No x Buttons diameter mm | 角度 Button angle°
| 气孔 Air holes | 重量 Weight (Kg) | 编号 Part No |

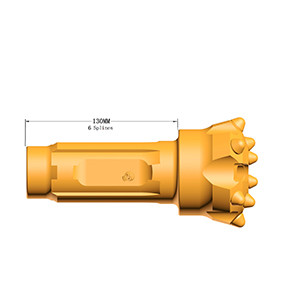

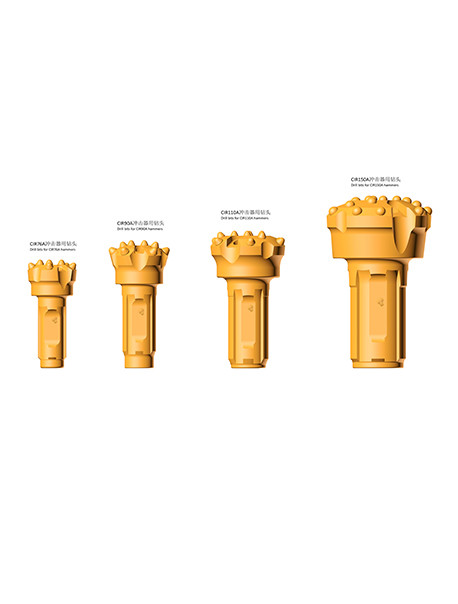

CIR90A冲击器用钻头 Drill bits for CIR90A hammers | |||||||
90 | 3 1/2 | 6x14 | 2x13+2x12 | 45 | 2 | 3.6 | CIR90A-90BVC6 |
100 | 4 | 6x14 | 3x13+2x12 | 45 | 3 | 4 | CIR90A-100BVC6 |
110 | 4 1/3 | 6x14 | 3x13+3x12 | 45 | 3 | 4.7 | CIR90A-110BVC6 |
120 | 4 3/4 | 6x14 | 3x13+4x12 | 45 | 3 | 5.2 | CIR90A-120BVC6 |
130 | 5 1/8 | 6x14 | 3x14+4x12 | 45 | 3 | 6.2 | CIR90A-130BVC6 |
140 | 5 1/2 | 9x14 | 3x14+5x12 | 45 | 3 | 7.8 | CIR90A-140BVC9 |
150 | 6 | 9x14 | 3x14+5x12 | 45 | 3 | 8.4 | CIR90A-150BVC9 |
